Charnwood W012 Bench Top Router Table


Price:
Sale price£89
Stock:
In stock (7 units), ready to be shipped

Description

Bench top universal router table for use with any 1/4" router.

  • Will Accept Any 1/4" Router
  • Melamine Faced MDF Table
  • 2 Vertical Hold Down Clamps

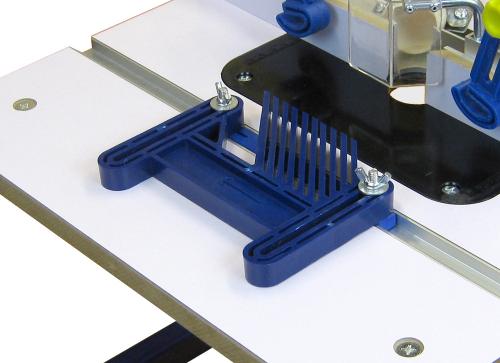

  • Horizontal Feather Board
  • Cutter Guard
  • 40mm Diameter Dust Collection Outlet

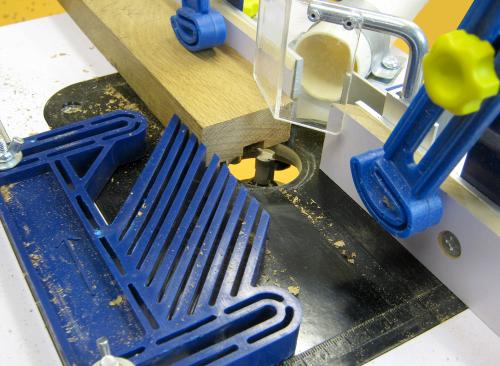

A router table will convert a hand held plunging router into a stationary tool which is safer to use and quicker to set up than using freehand. Ideally suited for all 1/4" sized routers, this compact router table will perform a variety of jobs such as edge moulding, trenching and cutting tenons.

The side frames are steel with a smooth melamine faced MDF table across the top. The insert plate, which must be drilled to suit your routers fixing points, is made from a tough plastic with an aperture in the centre for the cutter.

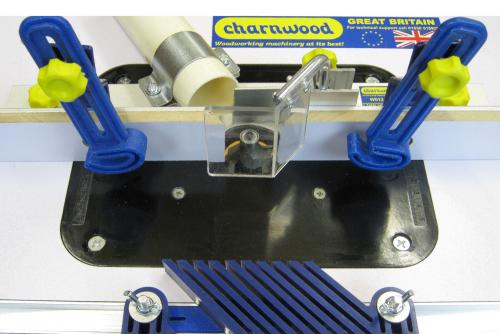

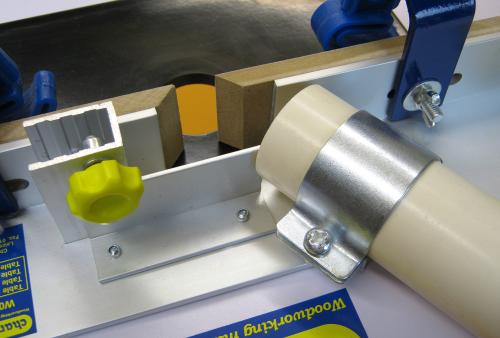

The fence arrangement is simple and effective. The three clamps supplied as standard will hold the workpiece securely down against the table and up against the cutter leaving the operator to merely feed the timber through from right to left. A perspex guards protects the operator from flying chips and a dust chute is included for connecting to a vacuum or extractor. A sliding mitre fence, with a replaceable wooden face, completes the standard equipment.

Suitable for use with router cutters up to 35mm diameter.

The table can be used with any router which has a faceplate diameter of up to 190mm. This covers all 1/4" shank routers and even some 1/2" shank routers can be used.

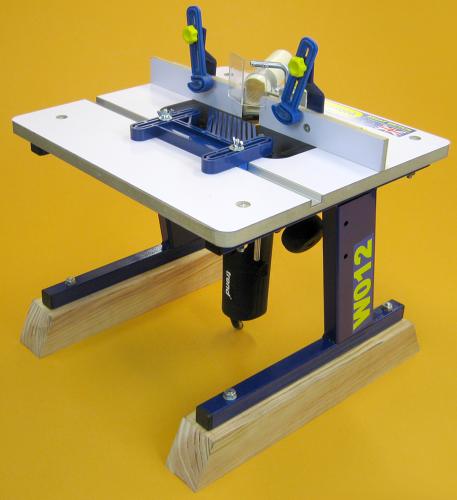

The height under the table is 260mm. If your router is taller than this, you will need to make 2 runners to go underneath the side legs to lift the table up, to accommodate the extra height. (For Example; the Trend T4 router requires side runners of 60mm in height)

Supplied with tough plastic insert plate, adjustable fence with two replaceable wooden faces, horizontal feather board, two vertical clamps and sliding mitre fence.

Specification

Table size 430mm x 400mm
Table height 290mm
Table thickness 20mm
Table aperture 35mm
Height Under Table 260mm
Maximum Faceplate Diameter 190mm
Mitre Guide Slot (W x D) 15mm x 8.5mm
Dimensions (WxDxH) 430mm x 400mm x 450mm
Weight 8kg
Rating Hobby
Warranty 1 Year

An optional NVR safety switch can be attached to the right hand leg to give a more convenient method of starting and stopping the router, rather than reaching underneath the table.
